BLUE LION / THE COMPLETE PRODUCTION JOURNEY

From fibre to
finished warmth.

Five connected stages bring a blanket from its textile base to a finished product. Follow the entire process, then choose the full line or the stations your factory needs.

0105RAW MATERIAL → FINISHED PRODUCT

THE FULL ELECTRIC BLANKET LINE

Your entire process.
At a glance.

Prepare the textile. Build the heating core. Finish the blanket. One clear route brings every stage together, with the HT Series at its heart.

Plan your production line
ONE CONNECTED PRODUCTION ROUTEFIBRE FINISHED ELECTRIC BLANKET
  1. Illustrative needle-punching equipment preparing a nonwoven cotton layer01
    PREPARE THE BASE

    High-speed
    needle punching.

    Entangle the fibres to form a soft, stable nonwoven cotton base.

    NEEDLE-PUNCHED COTTON
  2. Illustrative ultrasonic lamination equipment joining fabric and cotton layers02
    BOND THE LAYERS

    Ultrasonic
    lamination.

    Bond fabric and needle-punched cotton into the composite layer.

    PREPARED COMPOSITE
  3. 03
    BLUE LION / HT SERIES

    Fully automatic
    heating-wire laying.

    Fabric feeding, heating-wire placement, punching, flame lamination and cutting.

    Watch the machine in motion
  4. Illustrative edge-binding equipment finishing the edge of a blanket04
    FINISH THE EDGE

    Automatic
    edge binding.

    Bind the cut edges. The automatic binding program is in production validation.

    EDGE-FINISHED BLANKET
  5. Illustrative control switch connection to a finished electric blanket05
    COMPLETE THE PRODUCT

    Control switch
    & final checks.

    Fit the controller and complete the electrical and functional checks.

    FINISHED BLANKET
Complete lineIndividual machinesProject-specific configuration
Need another station? Talk to Blue Lion

THE BLUE LION AUTOMATION ADVANTAGE

Less handwork.
More output.

Blue Lion manufactures fully automatic equipment. The semi-automatic and manual methods below are shown for comparison only, to highlight the difference automation makes.

THE AUTOMATION ADVANTAGE / REAL PROCESS FOOTAGE

OUR EQUIPMENTBlue Lion · Fully automatic
VS
REFERENCE METHODS / COMPARISON ONLYSemi-automatic & manual
SEMI-AUTOMATICCOMPARISON ONLY

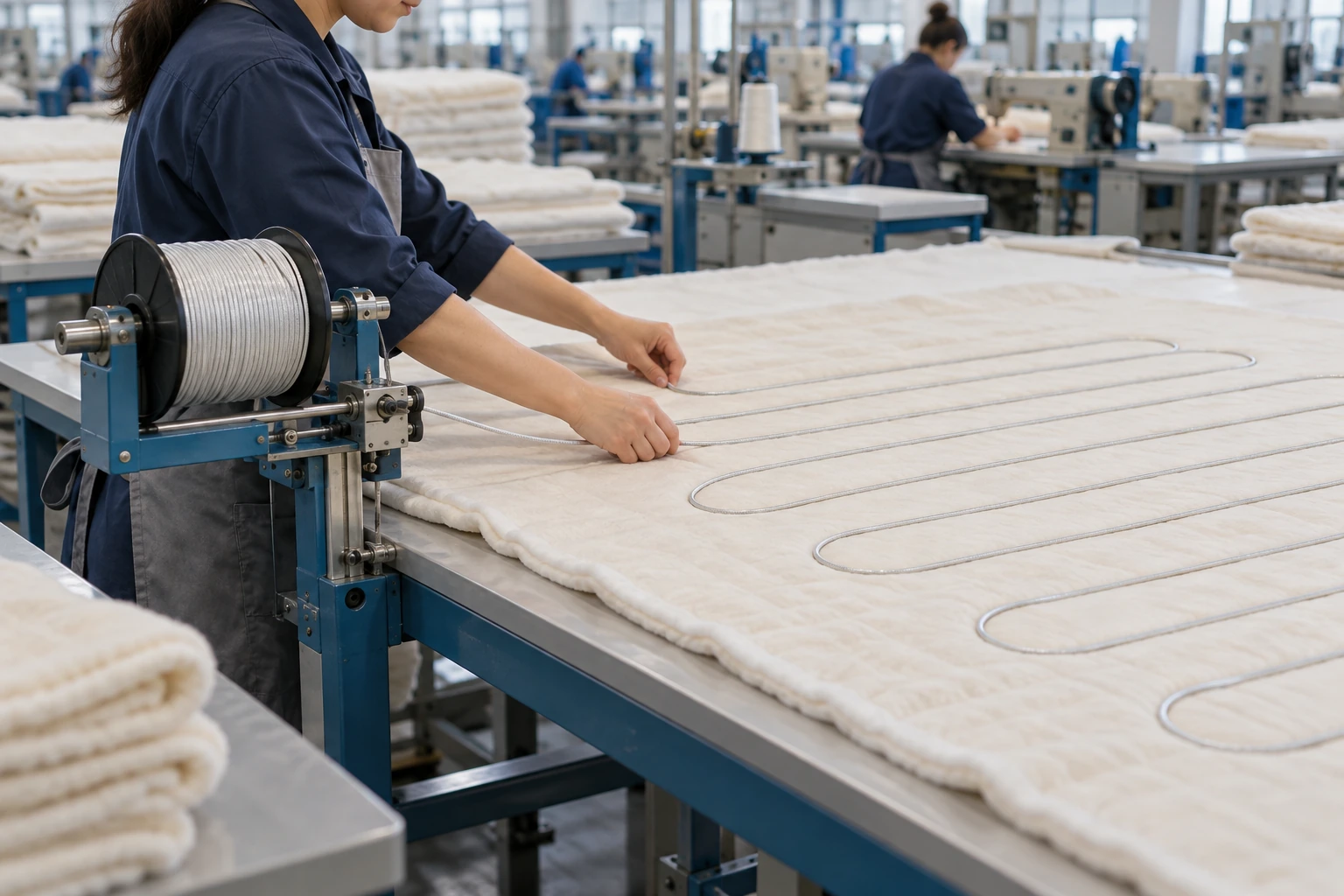

Reference method · hand-laid wire + machine lamination Open video ↗

Hand-laid wire.
Machine lamination.

The operator lays the heating wire around a fixture by hand. A powered lamination stage then bonds the layers. This semi-automated workflow combines manual wire placement with machine processing; the machine does not route the heating wire.

Wire placement
Operator-laid
Lamination
Machine-assisted
MANUAL PRODUCTIONCOMPARISON ONLY

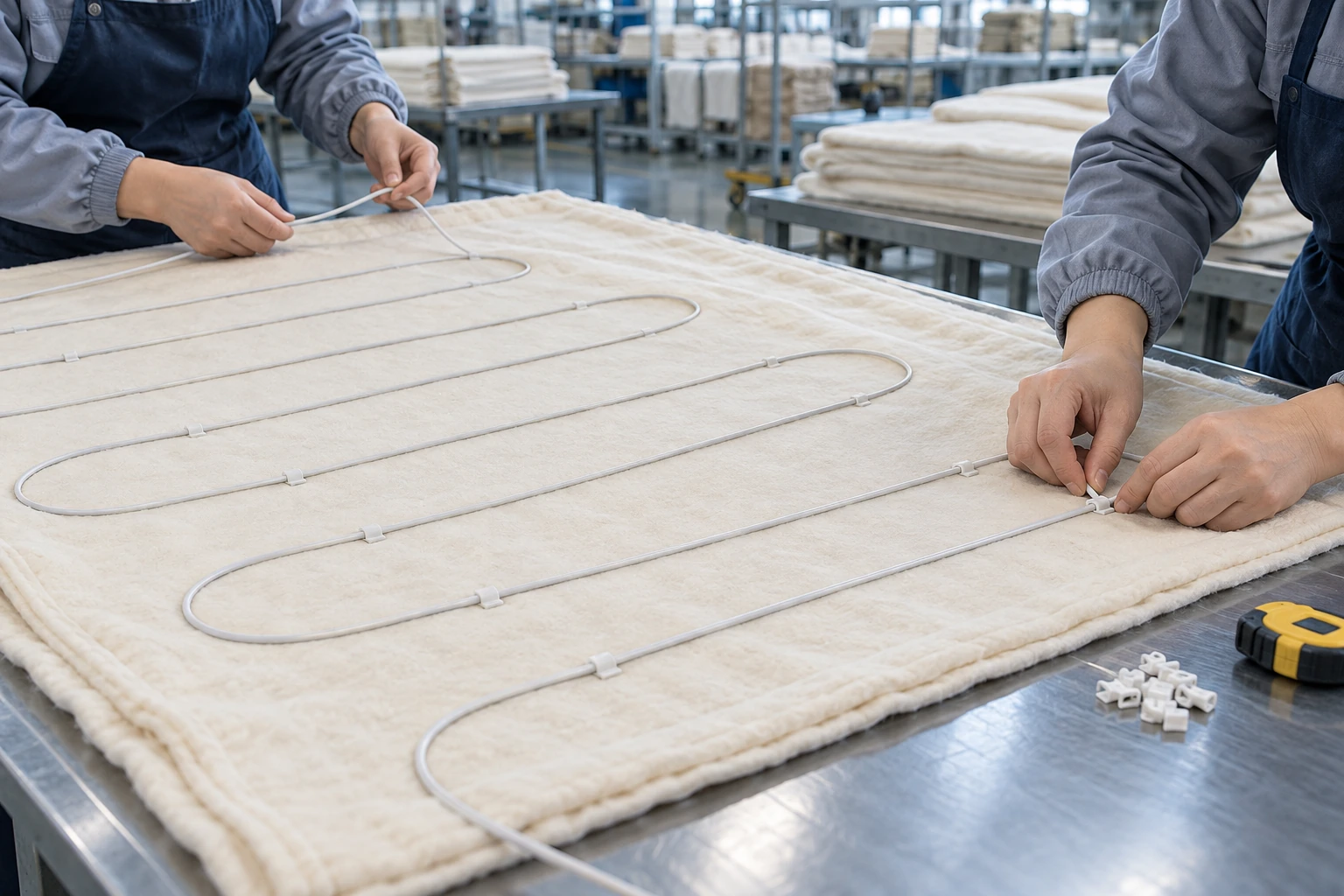

Reference method · hand-threaded heating wire Open video ↗

Every pass.
Still by hand.

The heating wire is threaded into the blanket shell one pass at a time. Operators guide the wire and reposition the material by hand, so this step depends on repeated manual work throughout.

Wire placement
Hand-threaded
Material handling
Operator-led

Real footage. Different levels of automation. The assisted heating-mat reference combines hand-laid wire with powered lamination. The reference clips show individual operations, not matched whole-line cycles. Video length is not a cycle-time measurement; the editable figures below are separate examples. The 50-second figure is Blue Lion's stated configured cycle per blanket. Assisted footage source · SBS ↗ Manual footage source ↗

ONE BLANKET / SAME PRODUCTION SCOPE

The advantage,
in numbers.

At Blue Lion's stated 50-second cycle, theoretical output is 72 blankets in an uninterrupted hour. The assisted and manual times below are editable examples, so you can compare against your own factory data.

BLUE LION / FULLY AUTOMATICSTATED MACHINE CYCLE
00:50PER BLANKET
THEORETICAL OUTPUT / HOUR
72BLANKETS
LABOUR COST / BLANKET$0.14
WHY IT MATTERS

A programmed wire path reduces dependence on hand placement. Each finished blanket still needs electrical and heating checks.

SEMI-AUTOMATIC / REFERENCEEDITABLE EXAMPLE
03:00PER BLANKET
THEORETICAL OUTPUT / HOUR
20BLANKETS
LABOUR COST / BLANKET$1.00
WHERE TIME GOES

Operator guidance and station transfers add handling between assisted steps.

MANUAL / REFERENCEEDITABLE EXAMPLE
10:00PER BLANKET
THEORETICAL OUTPUT / HOUR
6BLANKETS
LABOUR COST / BLANKET$3.33
WHERE TIME GOES

Measuring, routing and securing the wire rely on repeated manual work.

Adjust the example to your factory

Use your measured cycle times, staffing and hourly pay. The 50-second Blue Lion cycle stays fixed; the automatic-line operator count is adjustable because supervision arrangements differ.

Calculation: blankets/hour = 3,600 ÷ seconds; direct labour/blanket = hourly pay × operators × seconds ÷ 3,600. The default example uses $10/hour and 1 / 2 / 2 operators. Semi-automatic 3 minutes and manual 10 minutes are hypothetical inputs, not measured output or a guarantee.

Quality: No comparable defect-rate data is available. Test finished blankets of the same design for wire spacing, heating uniformity, insulation, electrical safety and wash durability. The figures exclude stoppages, setup, rework, materials, equipment and power costs, controller assembly, final inspection and packaging.

THE MATERIAL FOUNDATION / 01—02

Start with the layers
that make the blanket.

The upstream process prepares needle-punched cotton and bonds it to fabric before the heating wire enters the picture.

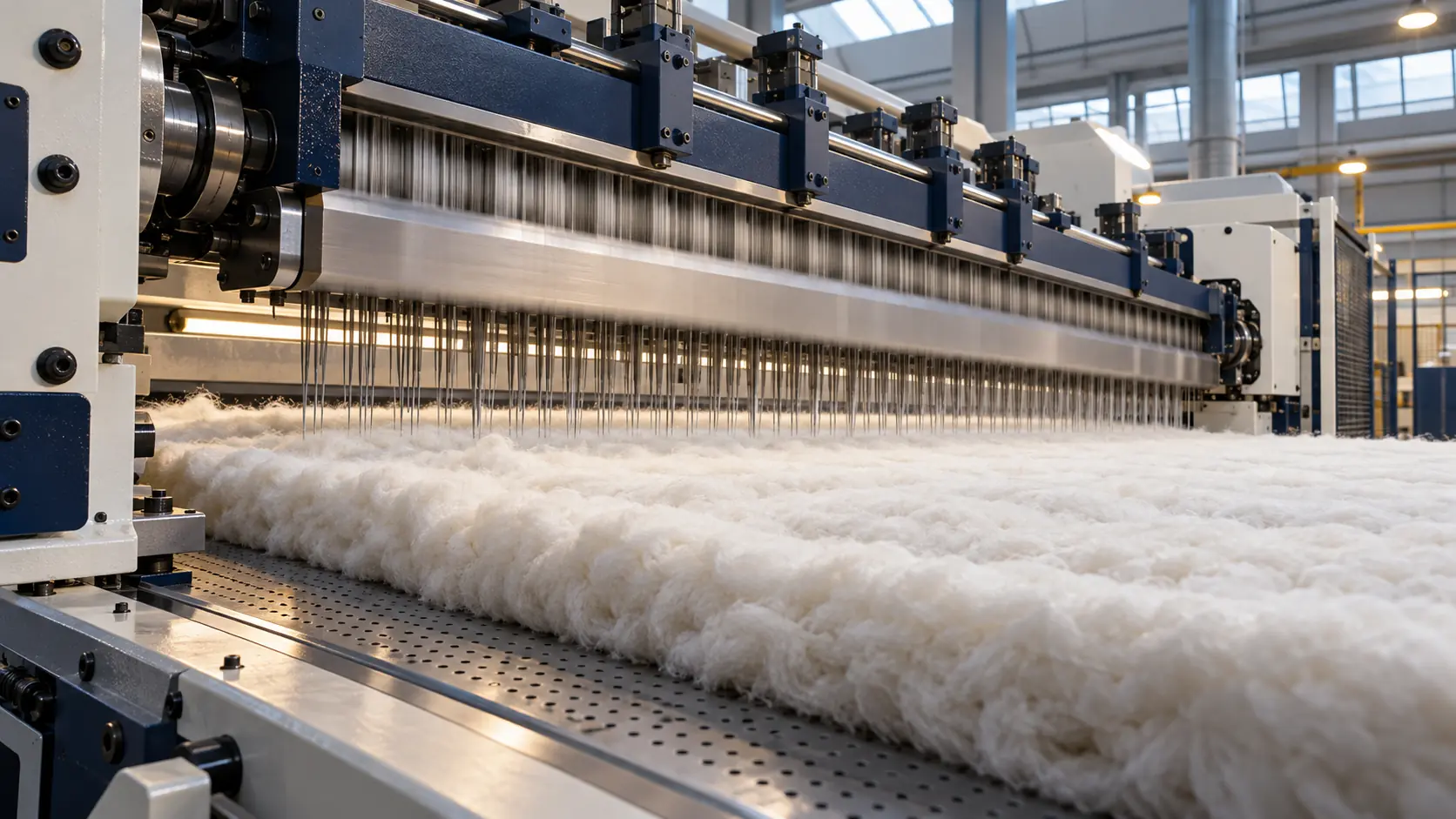

Illustrative needle-punching station forming a cotton blanket base
01 — PREPARE

High-speed
needle punching machine.

Fine needles entangle fibres to form the soft, stable nonwoven cotton base used in the blanket construction.

INPUT FIBRE OUTPUT NEEDLE-PUNCHED COTTON

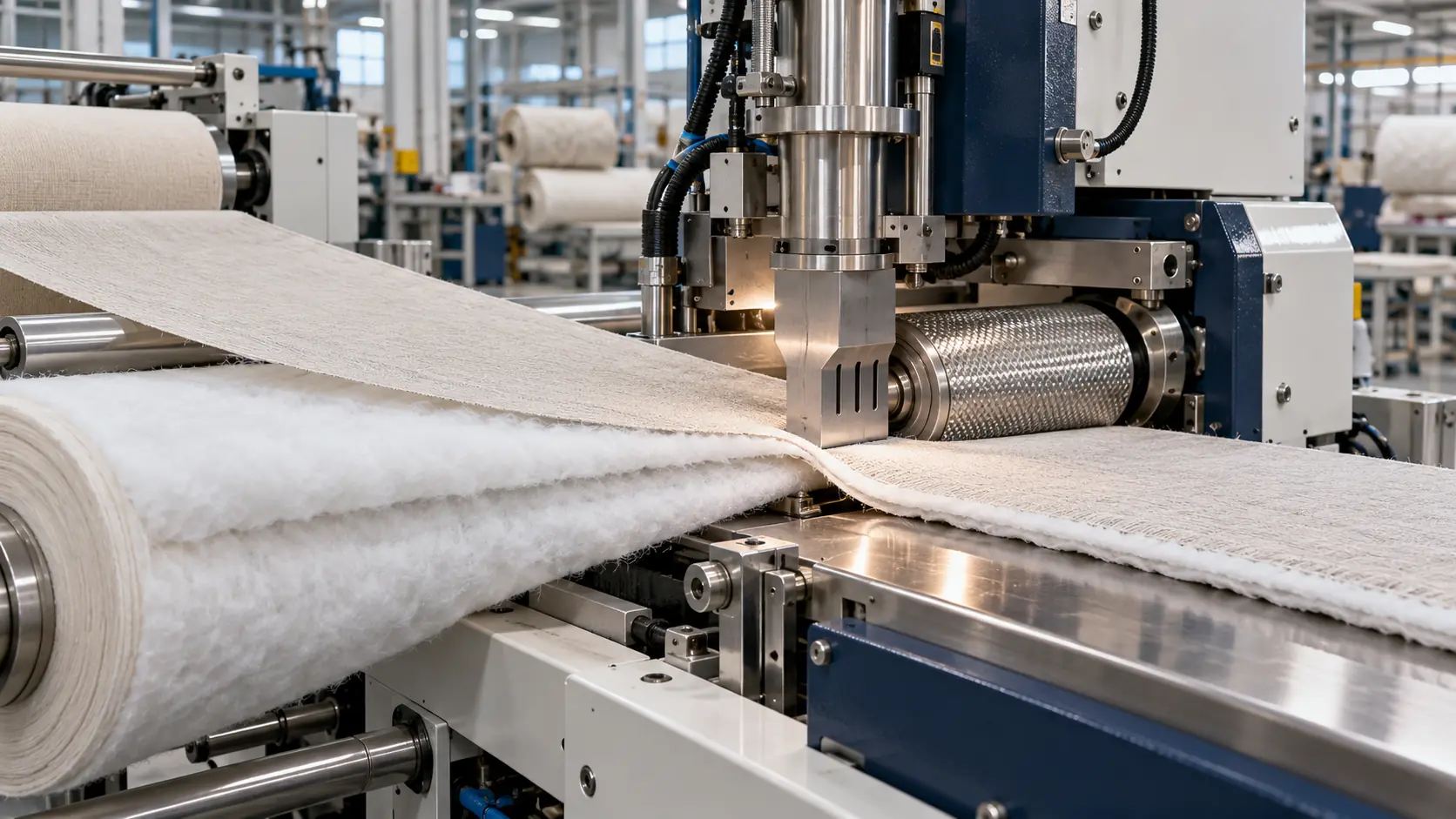

Illustrative ultrasonic machine bonding fabric and cotton layers
02 — COMBINE

Ultrasonic
laminating machine.

Ultrasonic vibration bonds fabric and needle-punched cotton into a composite layer. The material is prepared for the wiring station that follows.

INPUT FABRIC + COTTON OUTPUT COMPOSITE

FULLY AUTOMATIC WIRING MACHINE / 03

The blanket takes shape.

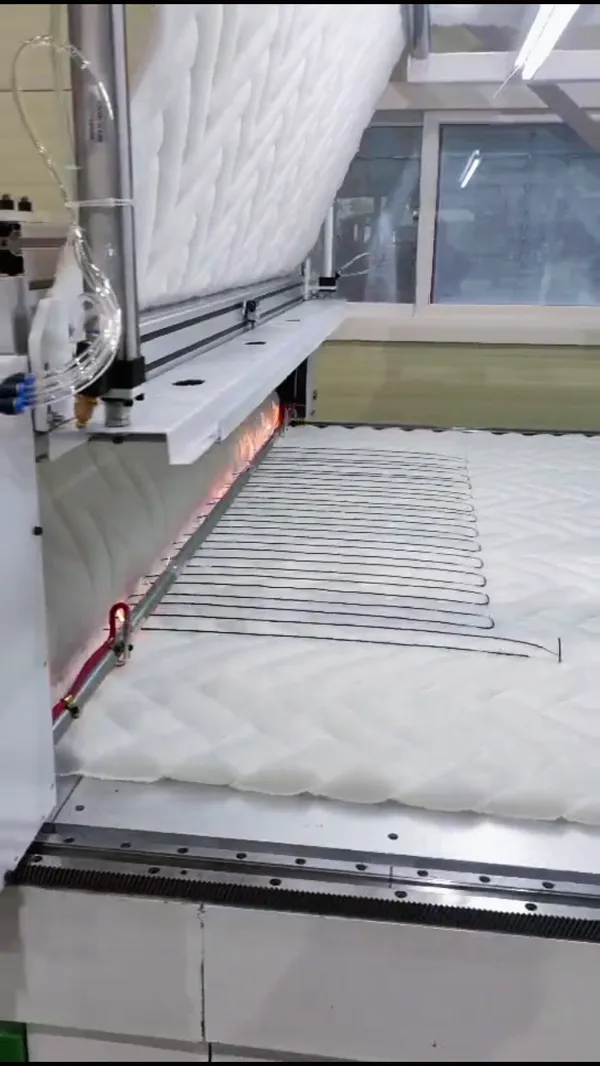

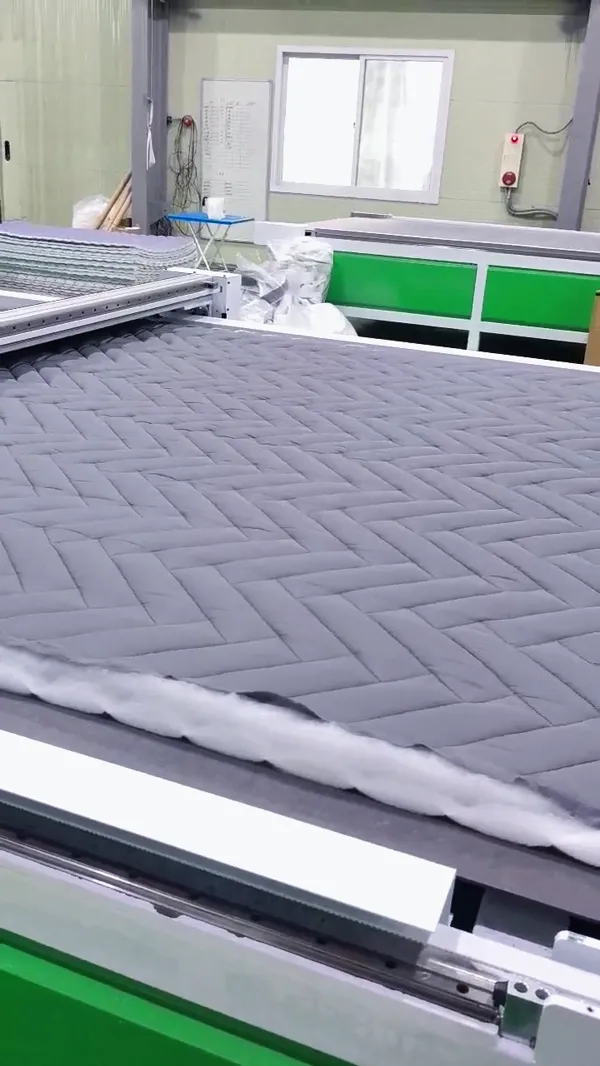

The wiring station brings active fabric feeding, heating-wire placement, punching and hooking, controlled flame lamination and cutting together in one production flow.

Active fabric feedLay heating wirePunch & hookFlame laminateCut to format

INSIDE STAGE 03 / REAL MACHINE FOOTAGE

Watch the process in motion.

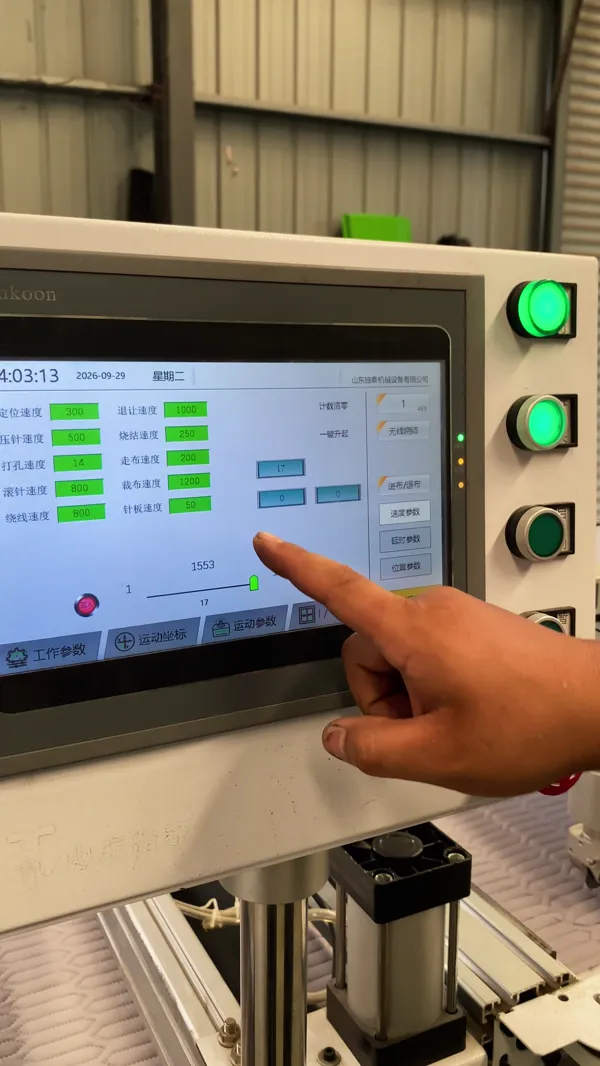

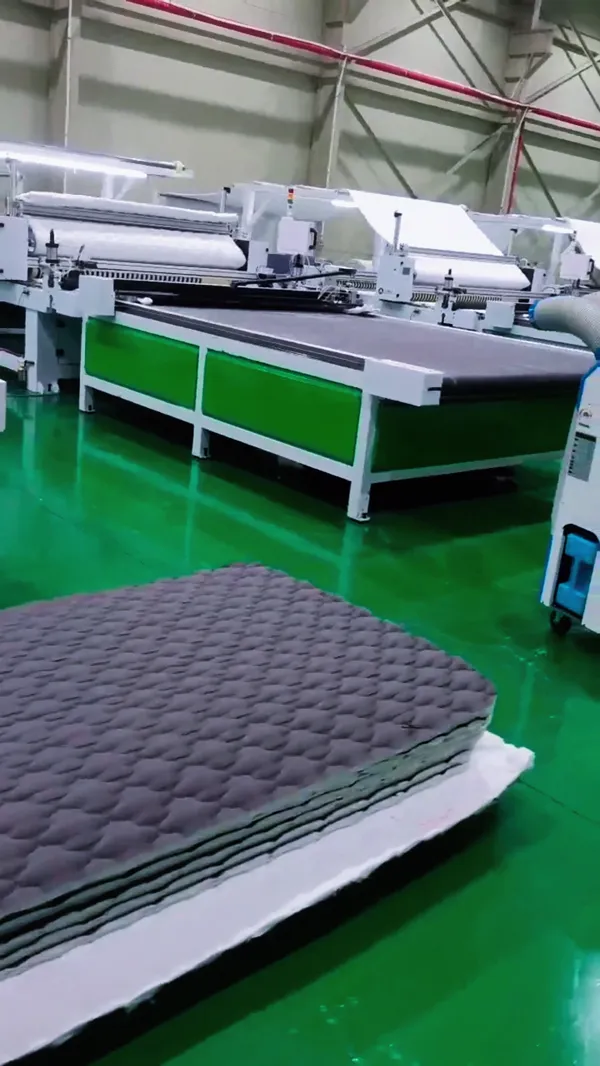

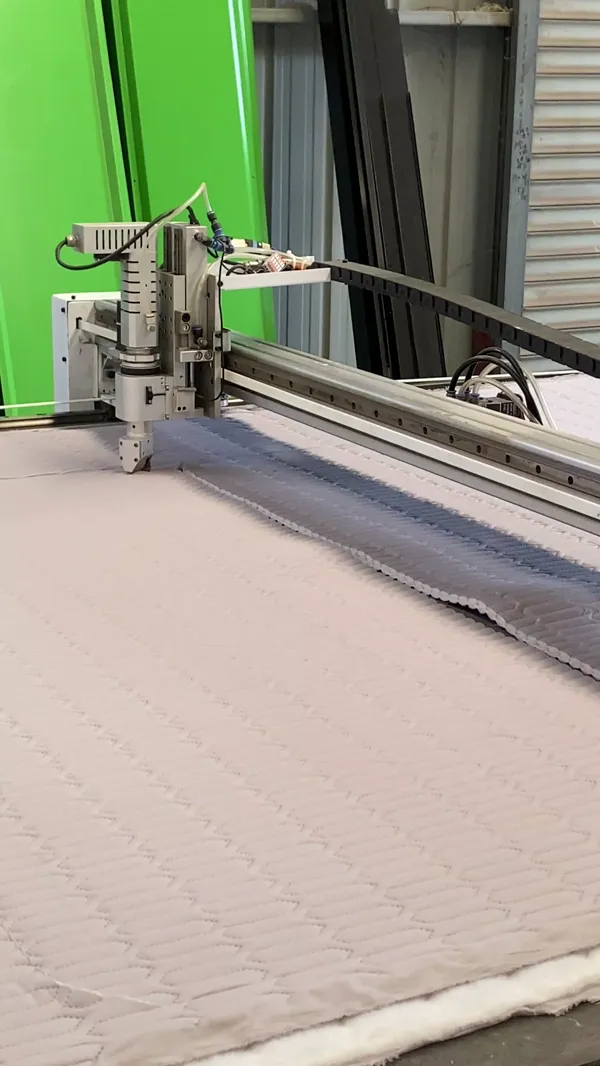

Eight real clips follow the wiring line, a one-touch setting change, Pro corner cutting and blanket output. Choose a chapter below to watch it.

RECORDED MACHINE OPERATION

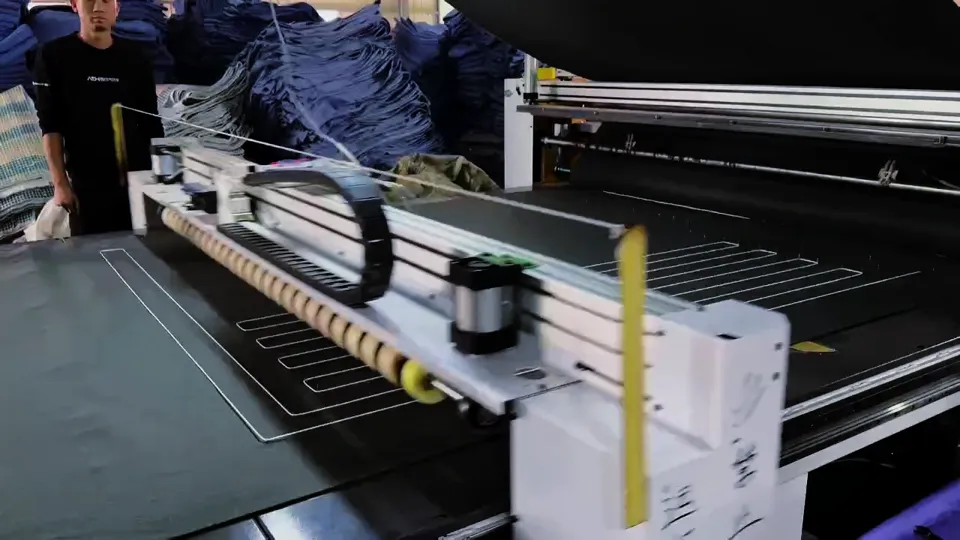

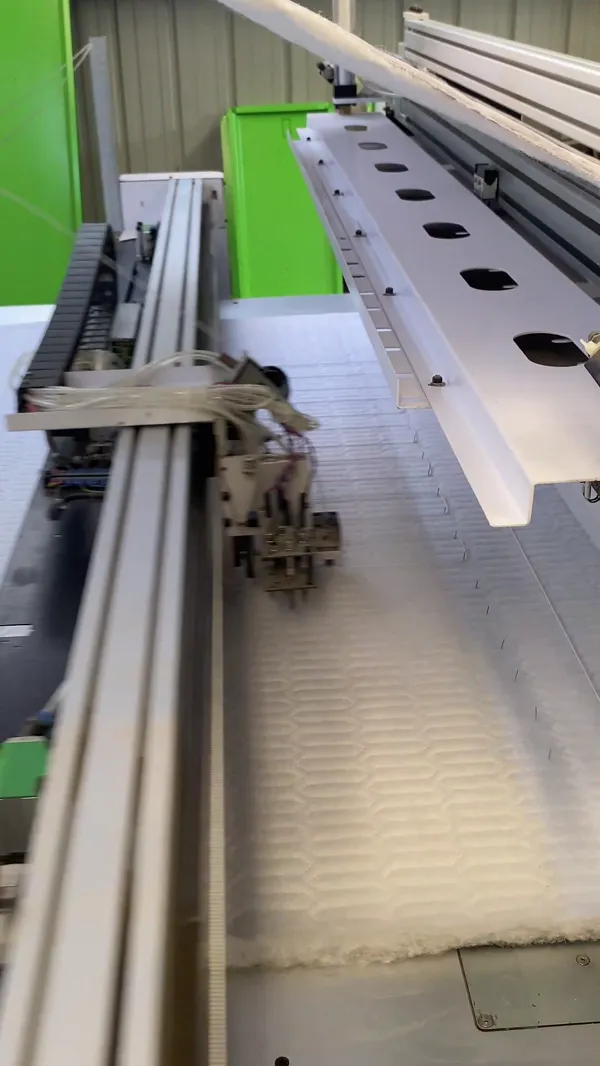

CLIP 02 / 08  ·  CORE OPERATION

Heating-wire placement.

Watch the gantry lay heating wire along the planned route on the moving blanket material. This is the machine-led step at the heart of the HT Series.

00:42  ·  FACTORY CLIPSELECT A CLIP BELOW ↓

EQUIPMENT DEMONSTRATION FOOTAGE Clips 01–08 are a video index within the wiring process, separate from the five full-line stages above. Equipment sequence and finish depend on the specified setup.

ONE CORE PROCESSTwo ways to finish the corner.

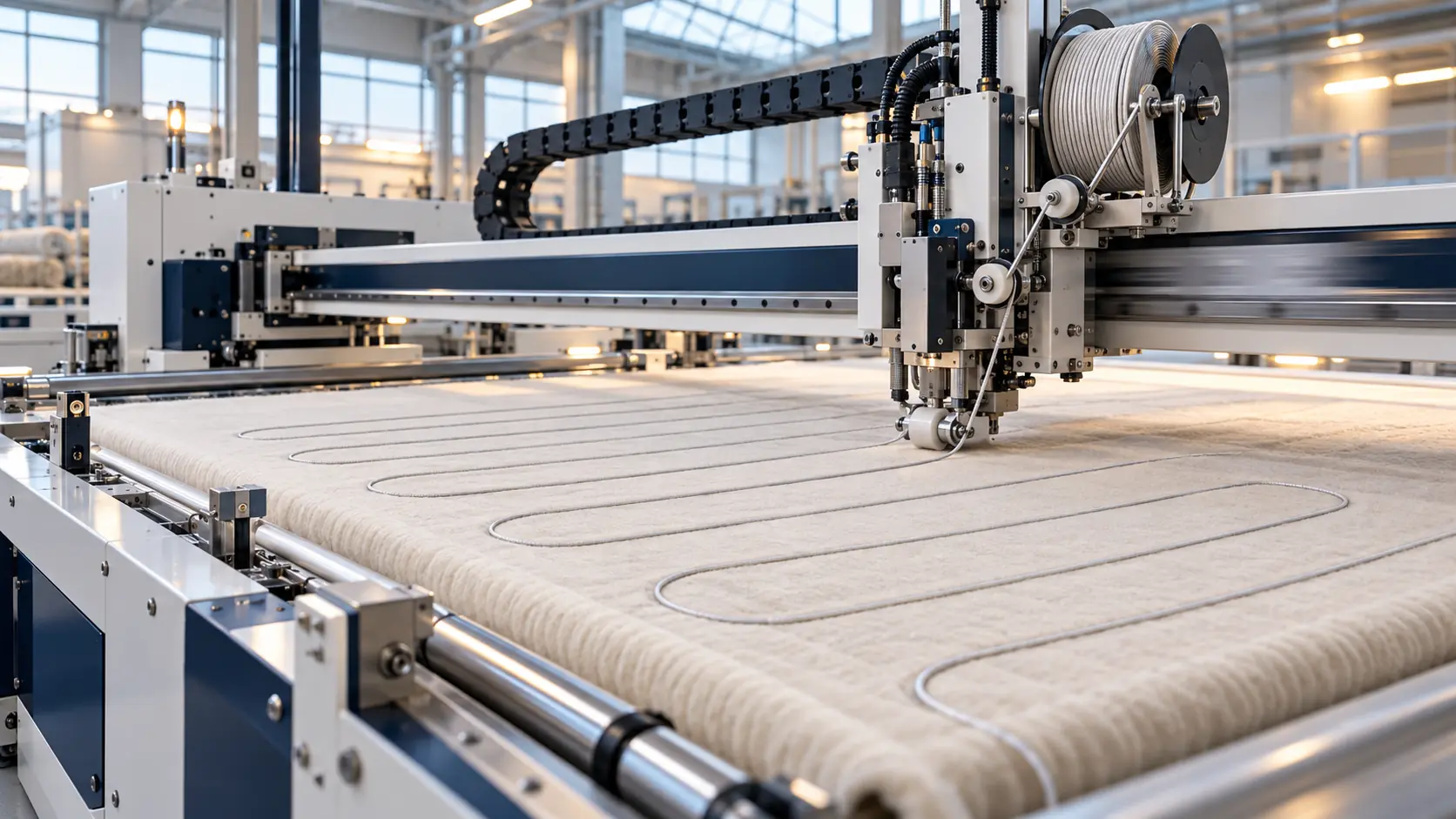

Illustrative automatic heating-wire gantry laying a planned path on the blanket
03 / HT SERIES

Standard

Automatic production through cutting, with square corners as the finished format.

Explore Standard

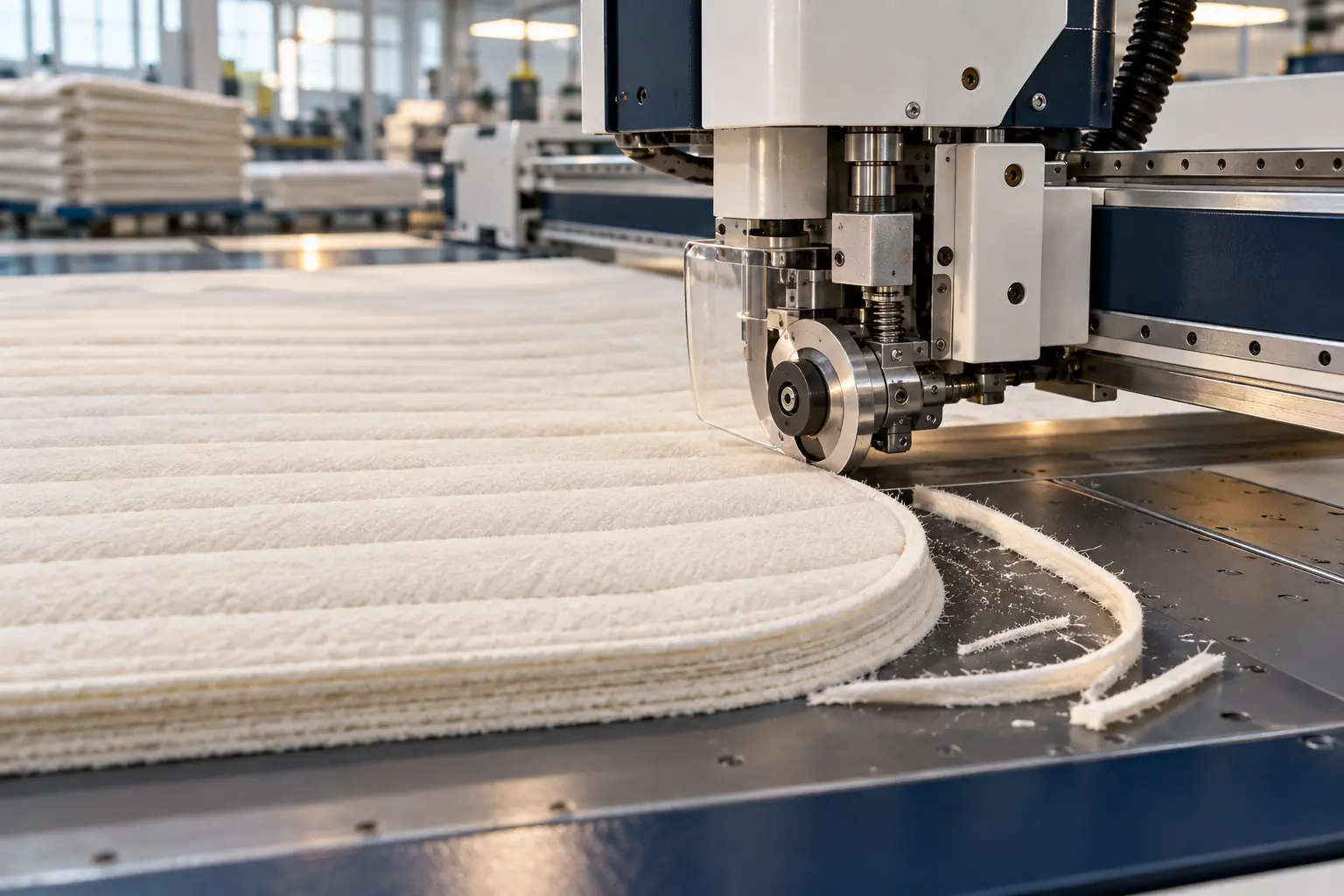

Illustrative Pro cutting detail showing the cutting head and the rounded blanket corner
03 / HT SERIES

Pro

The same core process, plus integrated adjustable rounded-corner cutting.

Explore Pro

Both versions include active fabric feeding and automated wiring. Pro adds the rounded-corner cutting station; the ordered configuration is confirmed by quotation.

DOWNSTREAM FINISH / 04—05

Make it ready
for the customer.

After the wired, laminated piece is cut, edge finishing and the control assembly complete the product.

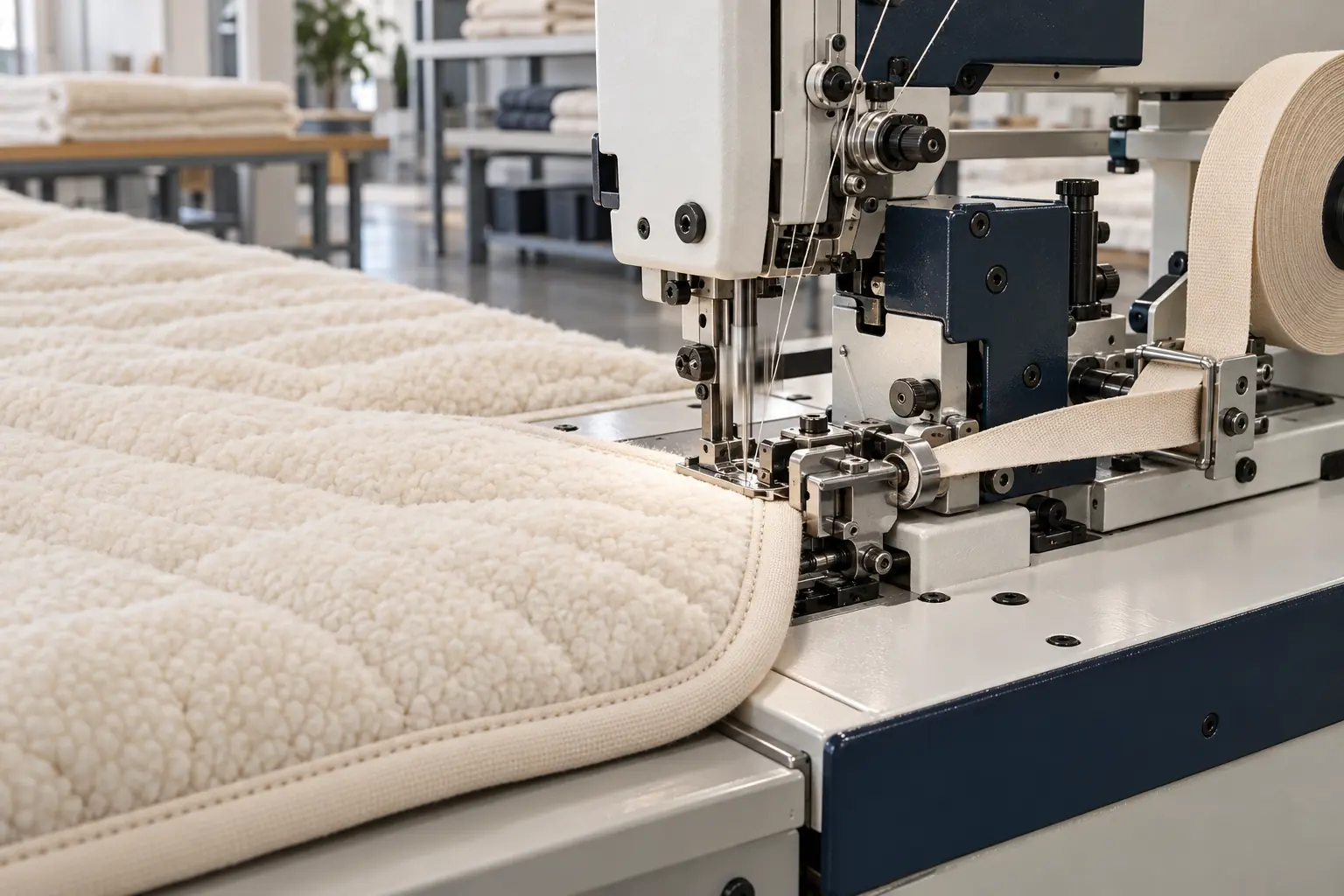

Illustrative automatic edge binding on an electric blanket
04 — FINISH THE EDGE

Automatic
overedging machine.

The flow calls for four-sided edge binding after cutting. The automatic binding machine is in production validation; the integration and supply schedule are confirmed for each project.

See the binding program

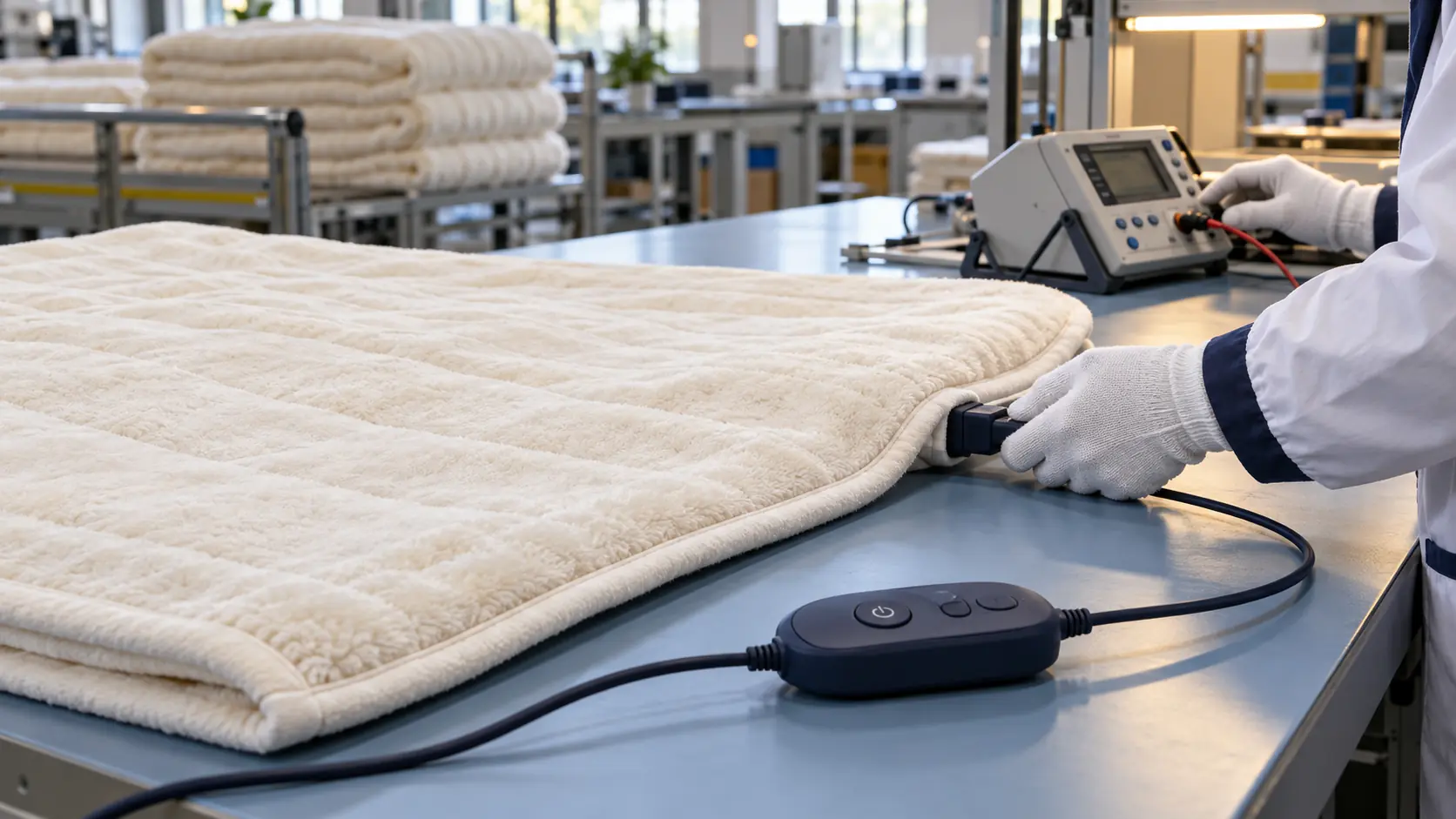

Illustrative control-switch connection and final inspection of a finished blanket
05 — COMPLETE THE PRODUCT

Control switch
& final checks.

Fit the specified control switch and complete the agreed electrical and functional checks. The blanket is then ready for the customer's final packaging process.

FINISHED ELECTRIC BLANKET

BUILD YOUR OWN PRODUCTION PLAN

The whole line.
Or the part you need.

Start with your material, blanket size, edge finish and target output. We can discuss a complete production route or individual machines, then confirm integration, availability and pricing for your project.
